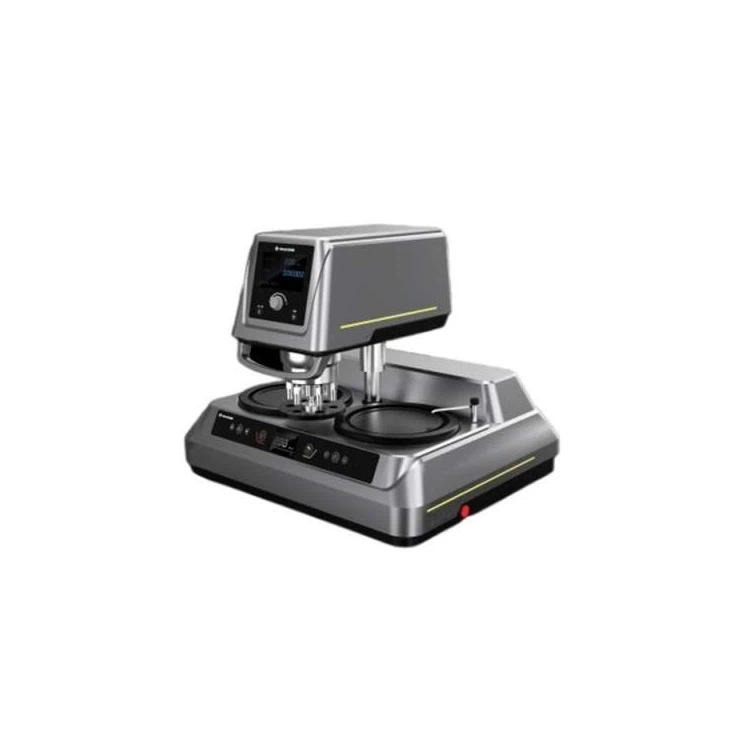

The automatic grinding and polishing machine is a double-disc desktop grinding and polishing machine.
According to international standards, it adopts international advanced technology to develop and manufacture a new type of grinding and polishing equipment that integrates central afterburner and single-point afterburner.
The rotation direction of the grinding and polishing disk can be selected arbitrarily, and the grinding and polishing disk can be quickly replaced; the multi-sample clamp tester, and the specific pneumatic single-point loading and center loading functions.
This machine adopts an advanced microprocessor control system, which makes the rotation speed of the grinding and polishing disc and the grinding and polishing head infinitely adjustable, and the setting of sample preparation pressure and time is intuitive and convenient.
Only need to replace the grinding and polishing disc or sandpaper and fabric to complete the grinding and polishing process. So that the machine shows a wider range of applications.
It has the characteristics of stable rotation, safety and reliability, low noise and the use of cast aluminum base to increase the rigidity of grinding and polishing.
The machine is equipped with a water cooling device, which can cool the sample during grinding to prevent the metallographic structure from being damaged due to overheating of the sample and to wash away the abrasive grains at any time. It is more beautiful and elegant, and has improved anti-corrosion, anti-rust performance and easy to clean.
It is suitable for automatic sample preparation in the process of rough grinding, fine grinding, rough polishing and fine polishing of metallographic samples. It is an ideal sample preparation equipment for enterprises, scientific research units and college laboratories.
|
Model |
KSMopao4S |
|
Diameter of grinding and polishing disc |
φ250mm (φ230mm, φ300mm can be customized) |
|
Grinding and polishing disc speed |
speed 50-1000 r/min (stepless speed regulation) and 300 / 600 / 900r/min (3-level constant speed) |
|
Grinding and polishing disc steering |
adjustable forward and reverse options |
|
Grinding and polishing head speed |
5-150 r/min (stepless speed regulation) |
|
Number of preparation samples |
6 |
|
Input air source |
0.4-0.7Mpa |
|
Sample preparation time |
0-3000 S |
|
Sample preparation pressure |
single point 20-70N center 150-300N |
|
Sample diameter |
factory standard φ30mm (customizable diameter φ22-φ45mm) |
|
Input voltage |
single-phase AC220V 50Hz |
|
Input power |
1.1KW |
|
Appearance size |
735*570*590mm |
|
Net weight |
100KG |
|
Gross weight |
120KG |

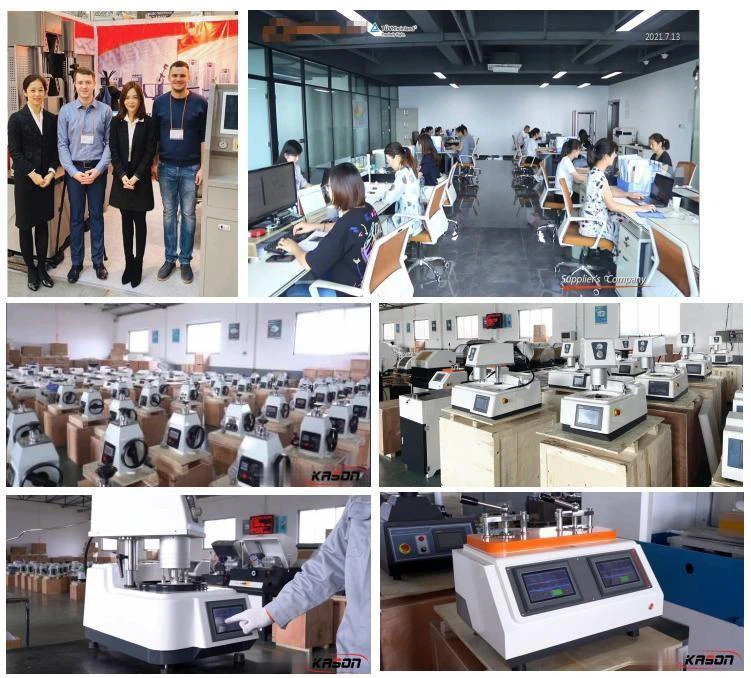

KASON is established in 2003,owns more than 8000 square meters factory.has a professional sales teams, modem enter prise technology center,scientific and technological research and development team. Our main products are Hydraulic Universal Test Machine, Electronic Universal Test Machine, Compression Testing Machine, Spring Testing Machine,Impact Testing Machine, Torsion Testing Machine, , Hardness Tester, Testing Machine Accessories.Machines passed the European CE authentication,American FDA certificate and and ISO 9001. Products sold to USA, Canada, Australia, Europe, Africa etc,more than 130 countries and supply OEM service for many customers.
Q: What's the delivery time?
A: Within 3 to 5 working days for delivery
Q: What's the payment terms?
A: T/T 30% deposit 70% after machine completed
Q: Are you factory or trading company?
A: We're factory, and can do exporting ourselves and trading others if you want
Warranty :
1.1 year warranty for machine host.
2.English manual and Video CD for machine using and maintenance.We offer free training in our factory, welcome to visit and learn more about our machines.
3.Free accessories :Software ,manual, book, cd videos, USB control .
After-sales service:
Training to install (3 options):
A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting.
B. You can come to our factory for training. We will offer professional guide. Direct and effective face-to-face training.all sorts of tools and testing facility.
