Overview:

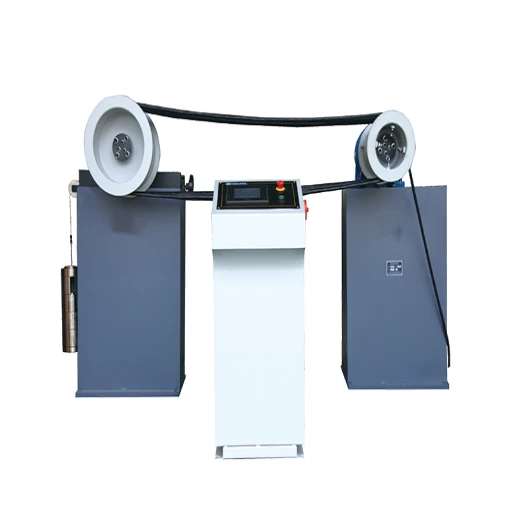

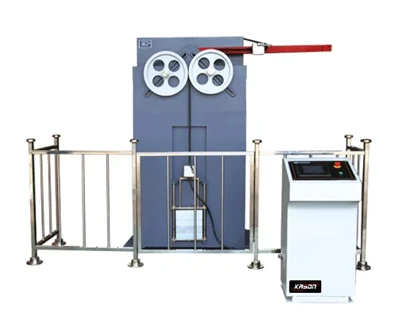

GJR-300 Series Optical Fiber Cable Bend (Winding) Testing Machine is intended to determine the ability of an optical fiber cable or cable element to withstand bending around a test mandrel such as U bend and S bend.
The sample is wrapped in a close helix around the mandrel at a uniform rate. Sufficient tension is applied to ensure that the sample contours the mandrel. The sample then is unwrapped.
A cycle consists of one wrapping and one unwrapping.
Parameter:
|
Mandrel diameter (Drive) |
mm |
D200, D300 |
|
Mandrel diameter (Slave) |
mm |
D300 |
|
Positioning range of slave mandrel |
mm |
0-250 |
|
Max. bending cycles |
Cycles |
1-9999 |
|
Winding frequency |
Cycles/min |
2-20 (Clockwise / Anticlockwise) |
|
Winding velocity |
r/min |
12 |
|
Mass of weights for applying tension |
Weight bracket: 5kg 1 pieces of 5kg weight increment, 1 piece of 2.5kg weight increment. |
|
|
Dimensions (L*W*H) |
||
|
Working frame |
mm |
1000*720*1300 |
|
Control console |
mm |
400*300 * 800 |
|
Power |
3-phase 4-wire, 50Hz, 1kW. |
|
