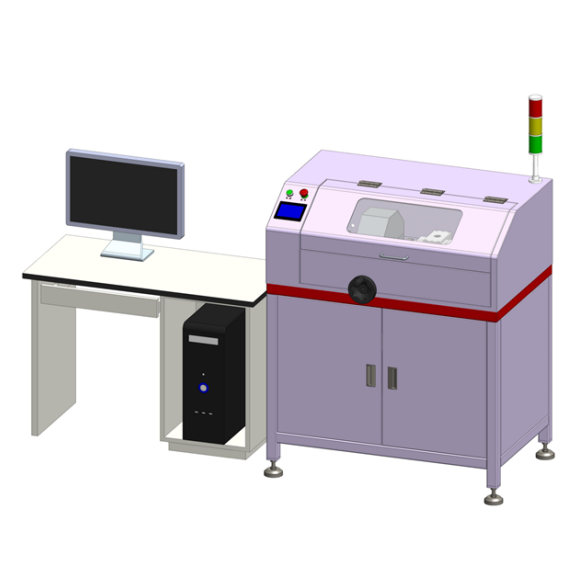

High Temperature Rotary Bending Fatigue Testing Machine Testing Machine

Rotary bending fatigue testing machine which Meet the requirements of four-point tensile test of cylindrical specimen of Test Standard and carry out the test.Can be tested at high temperature or normal temperature;

Send Inquiry

Chat Now

No Information

100KN Dynamic Static Fatigue Testing Machine Electro-hydraulic Servo Fatigue Testing System

Description

Function

Rotary bending fatigue testing machine, with the following functions:

Meet the requirements of four-point tensile test of cylindrical specimen of GB/T 4337-2015, and carry out the test;

Can be tested at high temperature or normal temperature;

Servo motor drive, speed stepless adjustment;

Counting function, accurately record the number of sample rotation;

Servo motor loading, force sensor to measure the loading force (moment);

The test speed can be changed during operation;

The loading force (bending moment) can be changed during operation;

Automatically shut down after sample failure and save data;

Calculate and process data, generate and print test reports.

Applicable standards:

(1)GB/T 4337-2015 "Rotating Bending Method for Fatigue test of Metal Materials"

(2)GB/T 2611-2007 "General Technical Requirements for Testing Machines"

(3) HB5152-1996 "Metal Room Temperature Rotational Bending Fatigue Test Method"

(4) HB5153-1996 "Metal High Temperature Rotational Bending Fatigue Test Method"

Main technical parameter

MODEL	KASON-BP300
Maximum speed	6000r/min
Loading torque	100Nm
Loading lever	125mm
Loading force	80N ~ 800N
Loading force resolution	0.05N
Relative error of loading force	≤±0.5%
Force value variation during operation	≤±2%
Continuous operating Temperature range	200 ~ 800℃
Average temperate zone length	30mm
Temperature gradient	≤15℃
Power: Main rotary motor	850W
Loading motor	100W×2
Heating furnace	1kW
Voltage and frequency	220VAC,60Hz,Single Phase
Main machine dimensions (width × depth × height)	1100×700×1310mm
